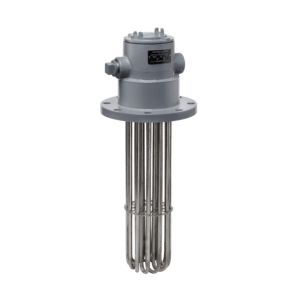

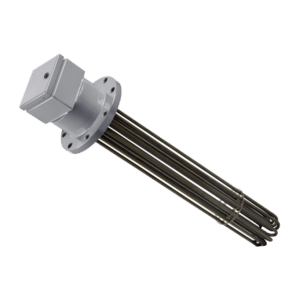

Our flanged immersion heaters are designed to fit standard ANSI flange patterns, providing a secure, reliable solution for heating air or liquids in tanks and pipelines. Built for industrial environments, they are ideal for applications ranging from water and oil to aggressive chemicals and gases.
The flanged mounting platform allows for customization to ensure the heater meets your applications unique requirements. See specifications for customization options.
Built in thermostats, thermocouples and other sensors available.
Looking for Titanium or Hastelloy Flanged heaters? See our Max-Ti and Max-Duty product lines.
Flange Connection: Carbon Steel, 304 or 316L Stainless Steel ANSI flange sizes. 2”, 3”, 4”, 5”, 6”, 10” & 12” available. Consult Factory for 300lb, Metric or custom flange designs.
Immersion Length & Cold Section: Fully customizable to match installation constraints.
Watt Density: available from 4W/in² to 60W/in². Customizable to the needs of the application.
Sheath Material: Copper, Incoloy 800, Incoloy 840, Inconel 600, 304 and 316L Stainless Steel. For Titanium or Hastelloy please see our MAX-Ti and MAX-Duty product pages.
Controls and Sensors: A range of thermostats, thermocouples can be built into the heater for convenient installation and ease of use.
Enclosure Ratings: Type 1 General Purpose, and Type 4 Moisture Resistant options available.
