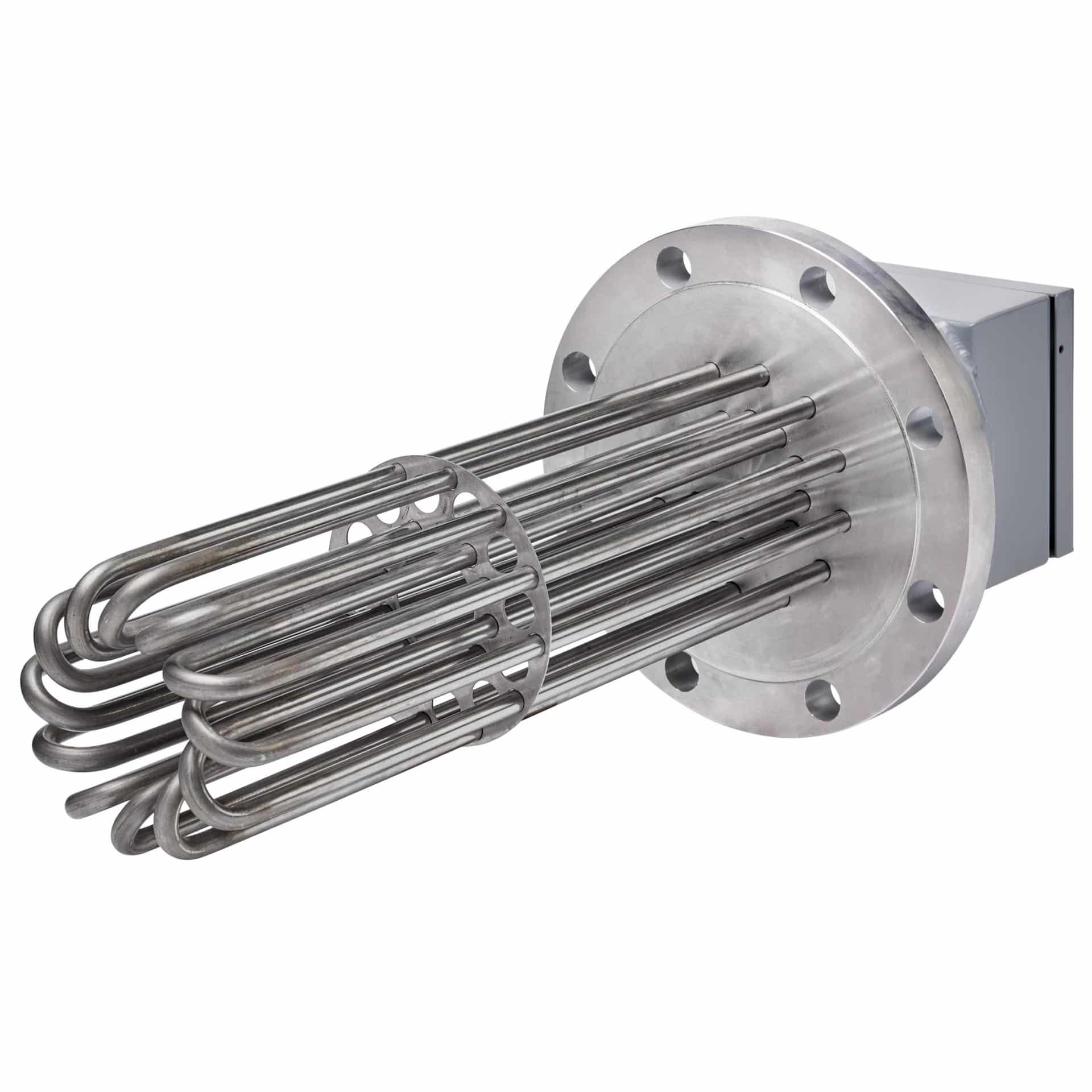

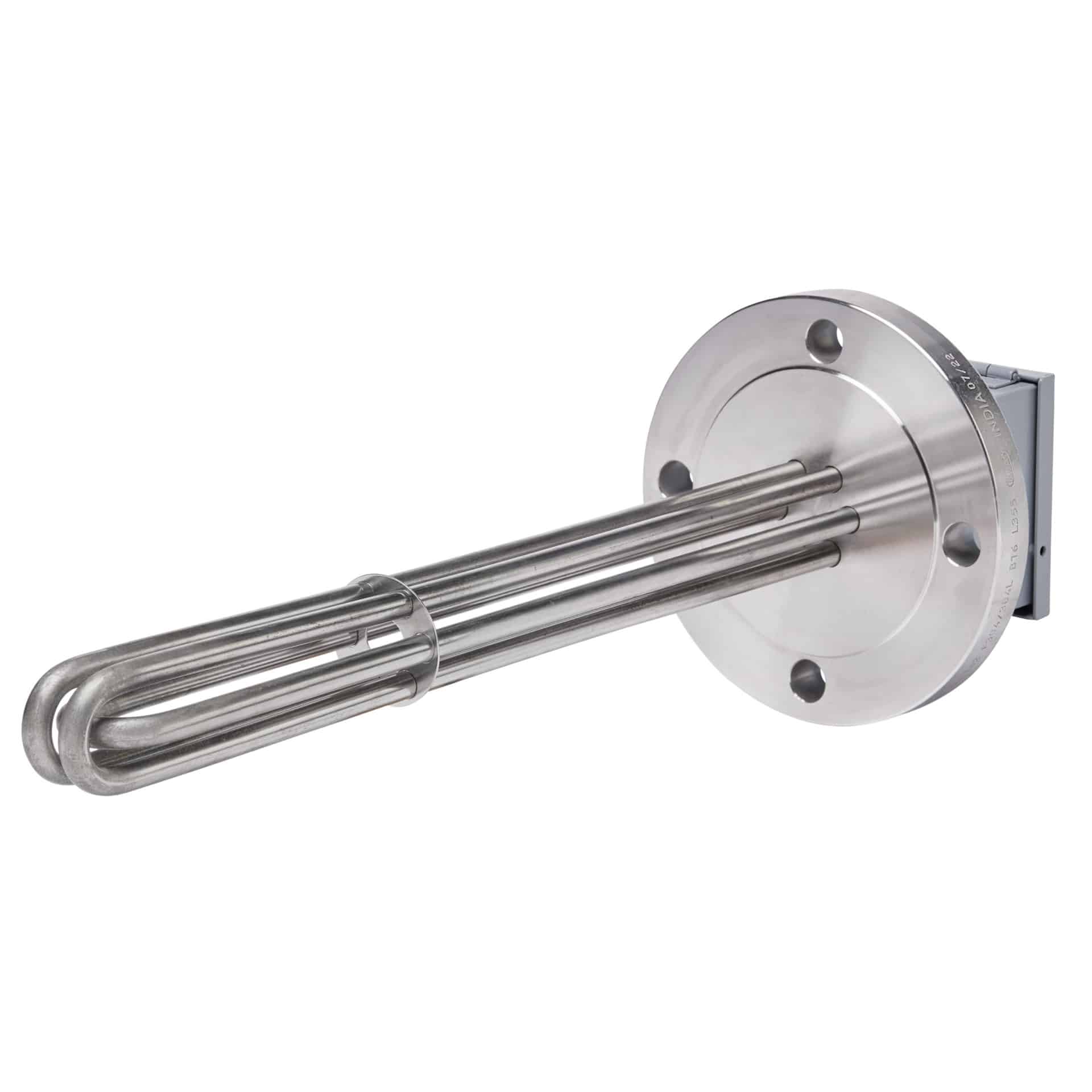

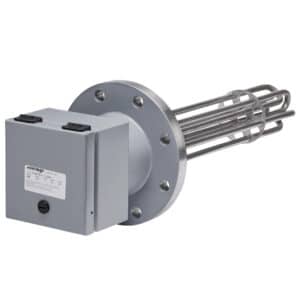

Max-Duty Series: Hastelloy Flange Heater

Alloy: All wetted surfaces Hastelloy® C276
ANSI Flange Sizes: 3" to 10"
Enclosures: Type 1, General Purpose, Type 4, Moisture-Resistant, or 4X Outdoor Washdown
Sensors: Type J/K Thermocouple, Resettable or Single-Blow Hi-Limit Sensors available.
Thermostatic Control: Built-in Single or Double-Pole Thermostats for convenient temperature control available.

request a quote

Watts

500 - 200,000

Volts

120 - 600

Made in USA

MAX DUTY SERIES HASTELLOY FLANGES — BUILT TO SURVIVE WHAT OTHER HEATERS CAN’T

Using the most chemically resistant alloy available, Hastelloy® C276, the Max Duty Series Hastelloy® Flange heaters offer superior chemical corrosion resistance with a rugged design that can stand up to industrial applications.
Speak to a Heatmax Heaters representative if Hastelloy® would be a good option for your unique application today.

Flange Connection: Hastelloy® C276 ANSI flange sizes. 3”, 4”, 6”, 8”, 10” & 12” available.
Immersion Length & Cold Section: Fully customizable to match tank depth and installation constraints.
Voltage Options: 120V to 600V AC, single- or three-phase configurations supported.
Wattage: Available in multiple wattages up to 200 kW.
Sheath Material: Hastelloy® C276. Offers superior corrosion resistance in acidic environments.
Enclosure Ratings: Type 1: For indoor installations. Type 4: For outdoor or washdown-rated applications.

Max-Duty

F Series: Flanged Heaters

Chemical Processing
- Acetic, Hydrochloric, Phosphoric, Sulfuric, Nitric and Mixed Acid Blends at limited temperatures – consult chemical manufacturer for guidance.
Semiconductor Manufacturing
Pharmaceutical or Biotech Manufacturing
Waste Treatment & Acid Neutralization
Laboratory & Pilot-Scale Research
