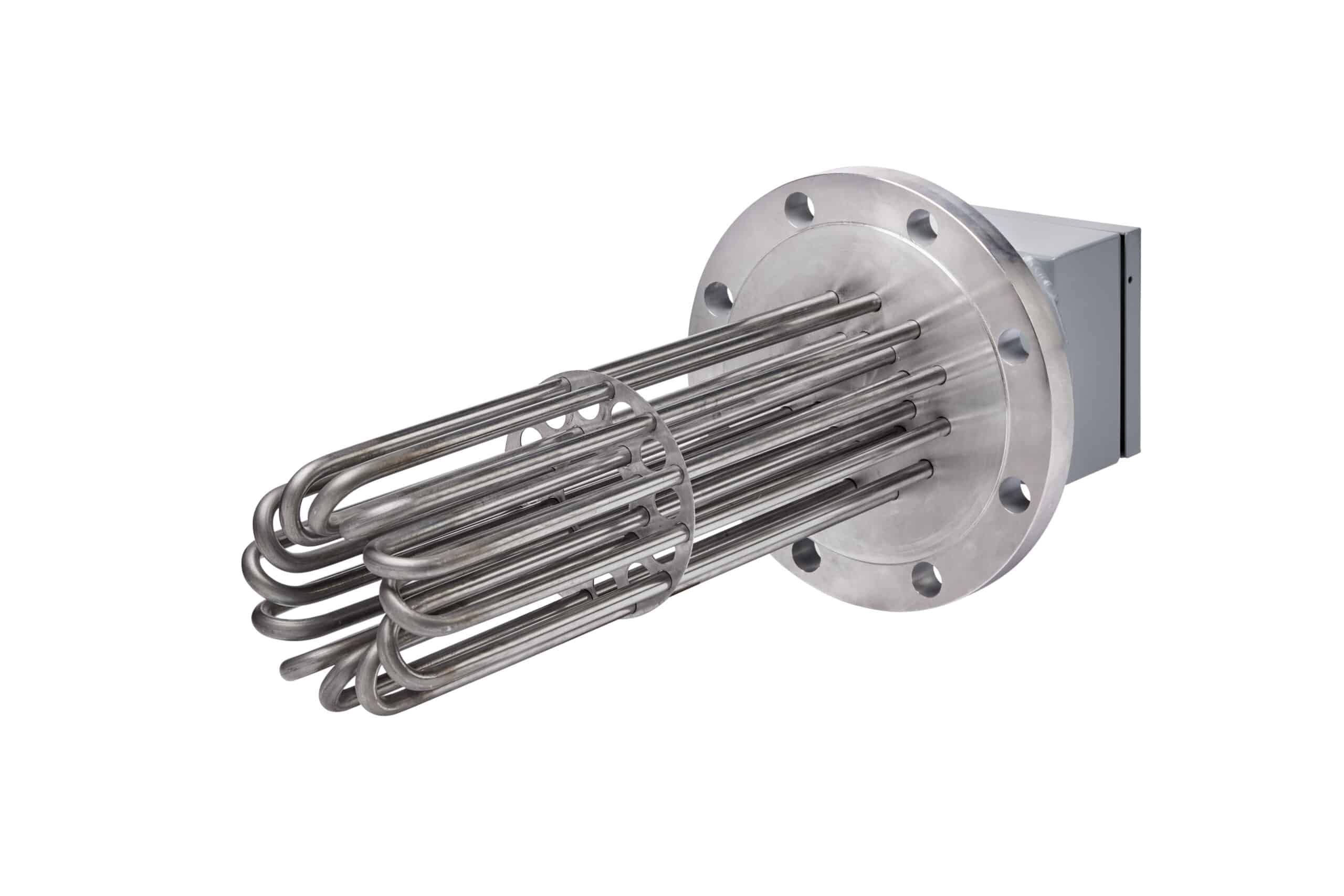

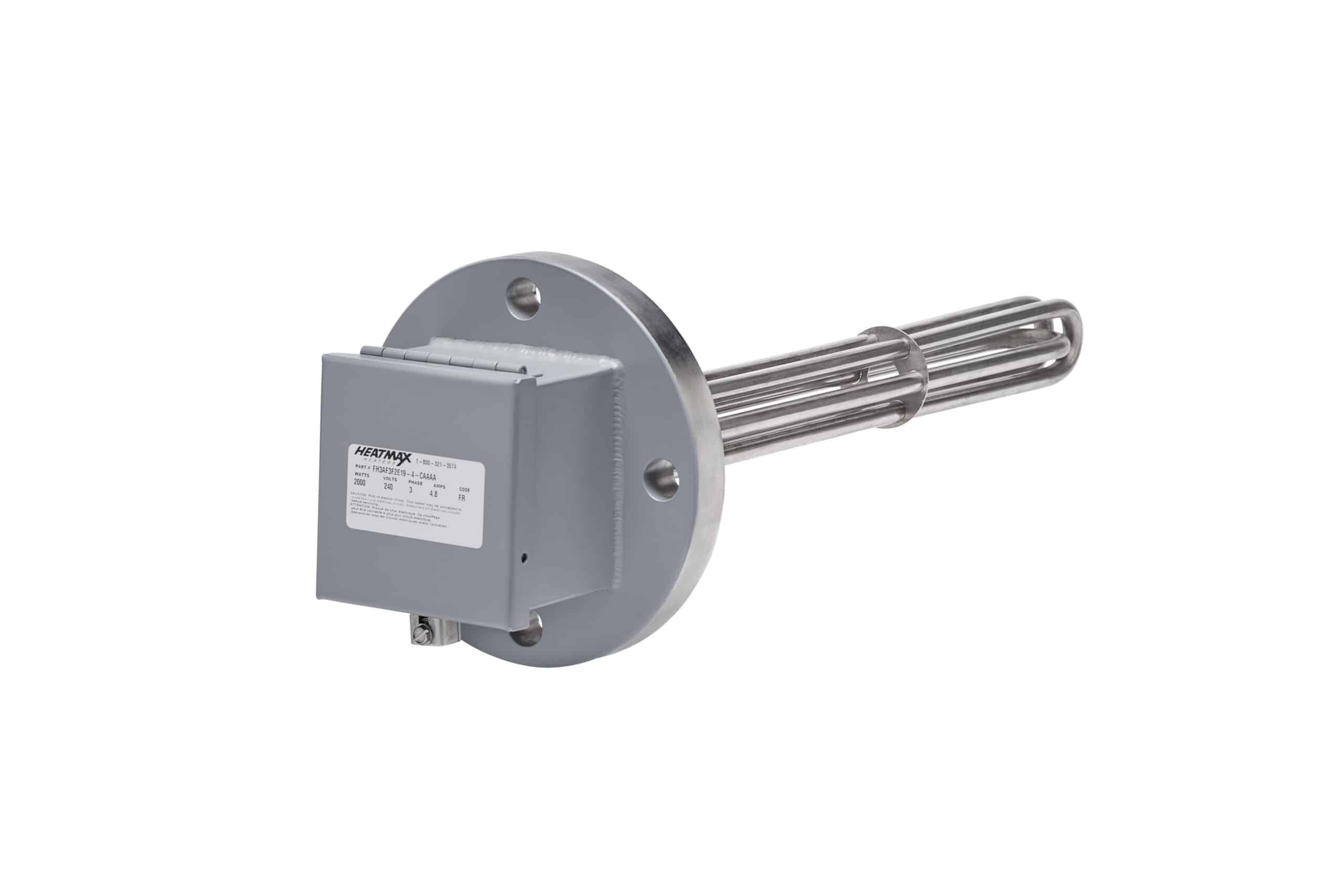

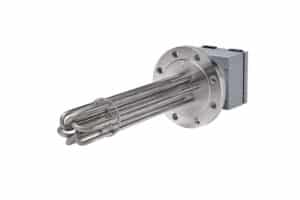

MAX-Ti Series: Titanium Flanged Heaters

• Engineered for long-lasting performance in aggressive chemical environments, the MAX-Ti Series features Grade 2 titanium flanges and heating elements for exceptional corrosion resistance. Titanium’s unique composition makes it ideal for heating acidic, alkaline, or salt-rich solutions.
• Choose from a Type 1 enclosure for indoor installations or a Type 4 enclosure for outdoor and washdown environments.

• Flange Connection: Grade 2 Titanium ANSI flange sizes. 3”, 4”, 6”, 10” & 12” available. Consult Factory for custom flange designs.
• Immersion Length & Cold Section: Fully customizable to match tank depth and installation constraints.
• Voltage Options:120V to 600V AC, single- or three-phase configurations supported.
• Wattage: Available in multiple wattages up to 200 kW. Our engineering team can assist with wattage calculations based on tank size, solution chemistry, and target temperature.
• Sheath Material: Grade 2 Titanium (standard). Offers superior corrosion resistance in acidic and salt-laden environments.
• Enclosure Ratings: Type 1: For indoor installations. Type 4: For outdoor or washdown-rated applications.
• Thermal Protection: Built-in thermal protectors to prevent over-temperature conditions and ensure safe operation.
• Certifications: UL and CSA recognized (when applicable)

• MAX-Ti Series: Titanium Flanged Heaters

• F Series: Flanged Heaters

MAX-Ti Series titanium flanged heaters are trusted across a wide range of industries for their durability, chemical resistance, and efficient heat delivery. Common applications include:

• Metal Finishing & Surface Treatment: Heating of acidic process solutions such as black oxide, zinc phosphate, and pickling baths
• Galvanizing: Flux tank heating in pre-galvanizing lines
• Battery Industry: Electrolyte heating for lithium-ion and nickel-based batteries
• Wastewater Treatment: Heating of corrosive liquids, chemical neutralizers, and sludge stabilization tanks
• Chemical Processing: Reliable heat delivery in acid, alkaline, or salt-rich environments
• Freeze Protection: For outdoor chemical tanks
