Tubular Elements

  • Diameter: 0.430/0.440” diameter & 0.315” diameter available.
  • Element Sheath Material: Copper, 304 & 316L Stainless Steel, Inconel 600, Incoloy 800 & 840 as well as Titanium and Hastelloy® available.
  • Customizable Length, Form and Watt Density: To fit your applications unique requirements.

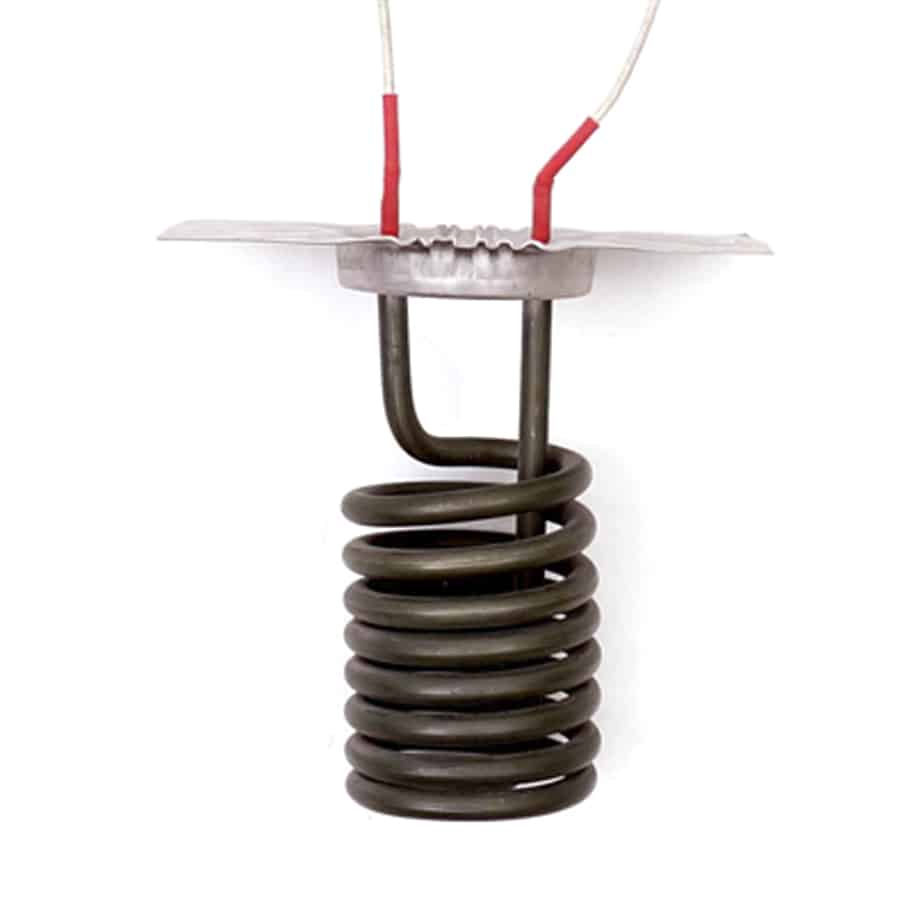

  • Mounting Options: Stainless steel bulkhead, mounting plate & location washers.
  • Terminations: Screw lug, lead wire and threaded terminals available.
UL Recognized Badge
CSA US logo
Watts
500 - 18,000
Volts
120 - 600
US flag
Made in USA

A HEATER IS ONLY AS GOOD AS THE ELEMENTS INSIDE IT. THAT’S WHY WE DON’T TAKE CHANCES — WE BUILD OUR OWN ELECTRIC ELEMENTS TO DELIVER DEPENDABLE PERFORMANCE WHERE IT MATTERS MOST.

  • Rugged and dependable, Heatmax tubular elements use high-quality materials, precision-wound nickel-chrome resistance wire, and a welded cold pin for excellent conductivity and durability.
  • 0.430/0.440” and 0.315” diameter elements are the two most commonly used in industrial heating systems because they offer the best value.
  • Optional epoxy and silicone end seals available.
  • Diameter: 0.430/0.440” diameter & 0.315” diameter available.
  • Element Sheath Material: Copper, 304 & 316L Stainless Steel, Inconel 600, Incoloy 800 & 840, Hastelloy® C276 as well as Titanium available.

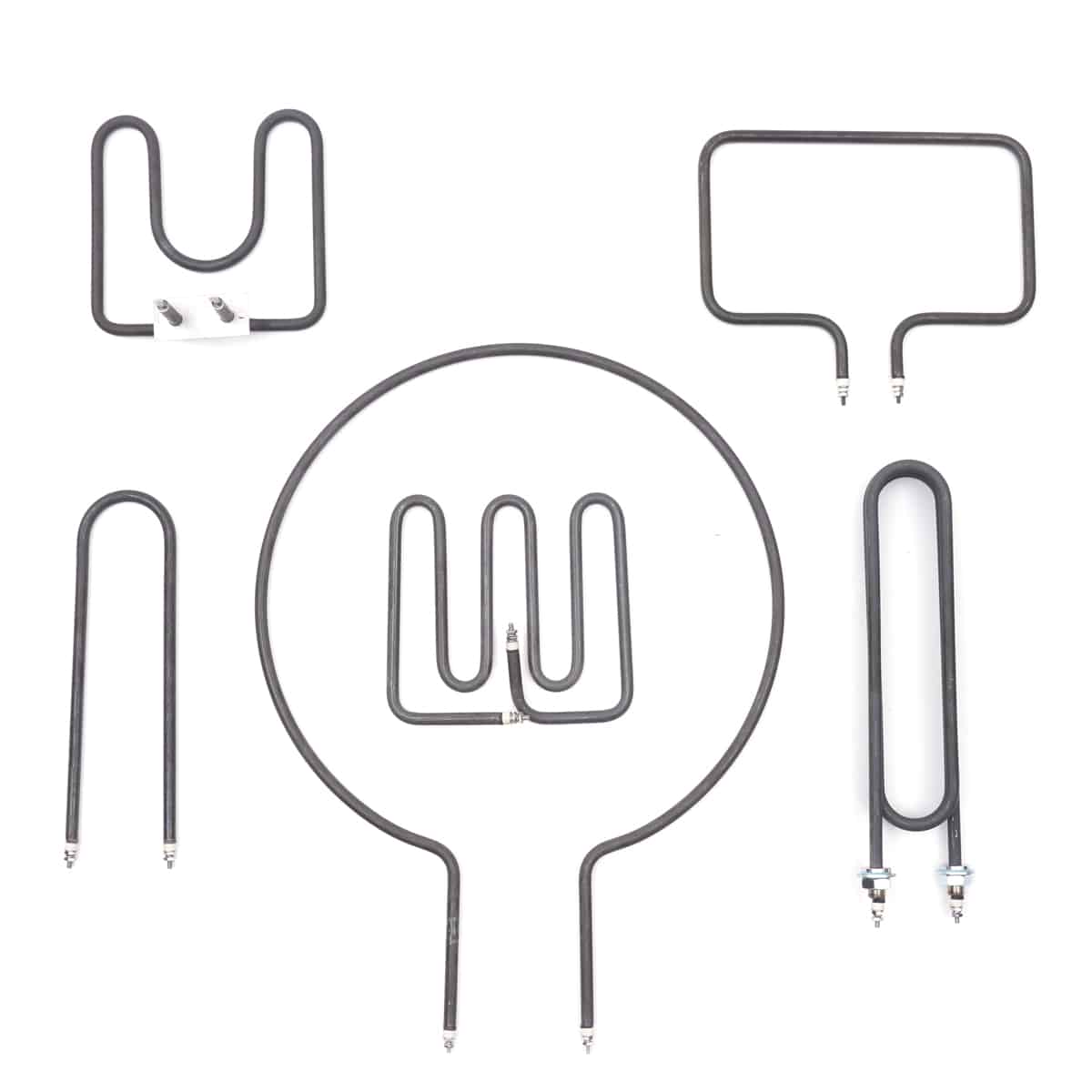

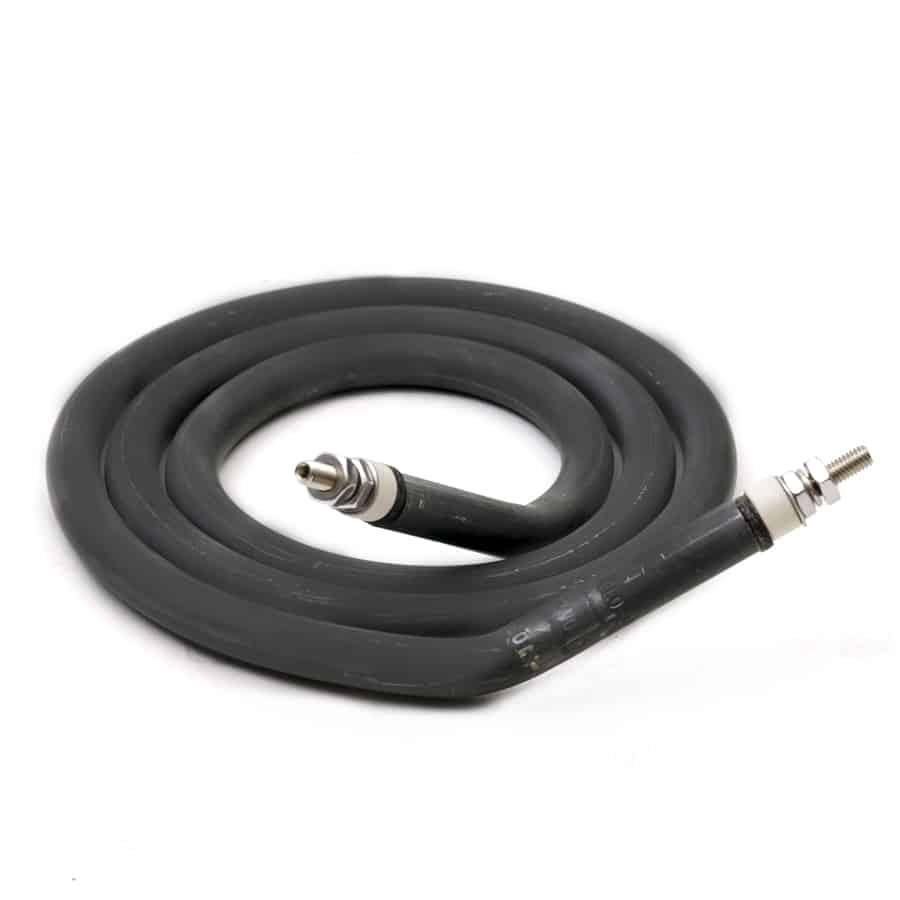

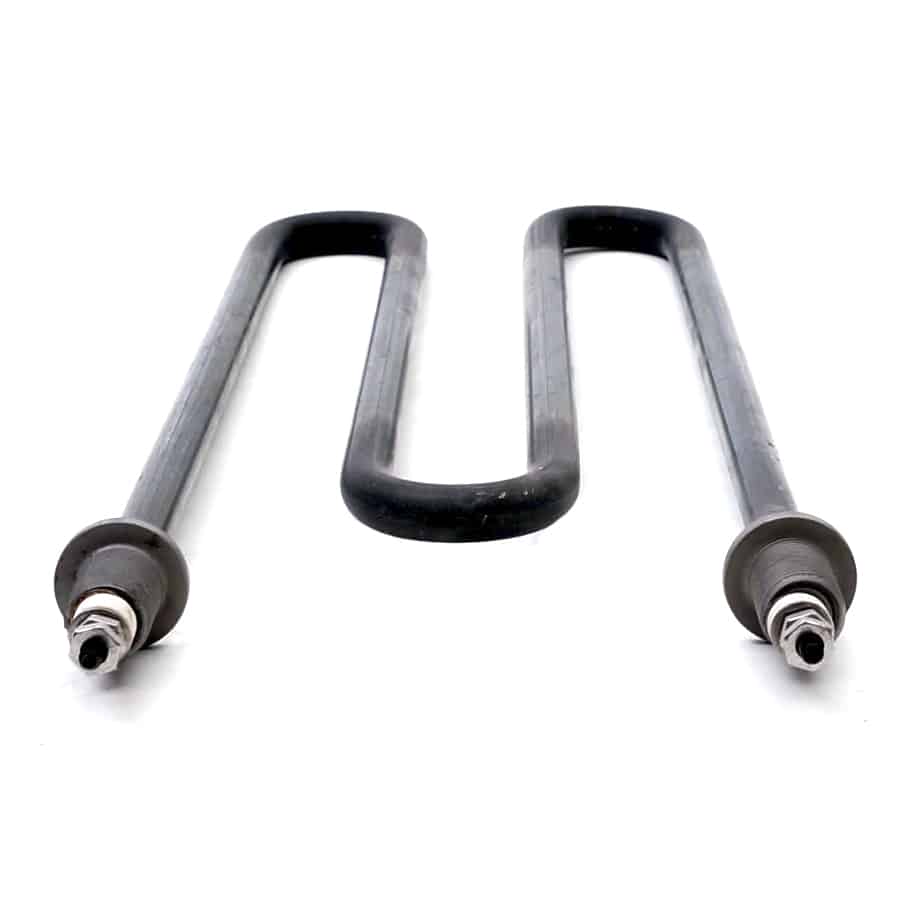

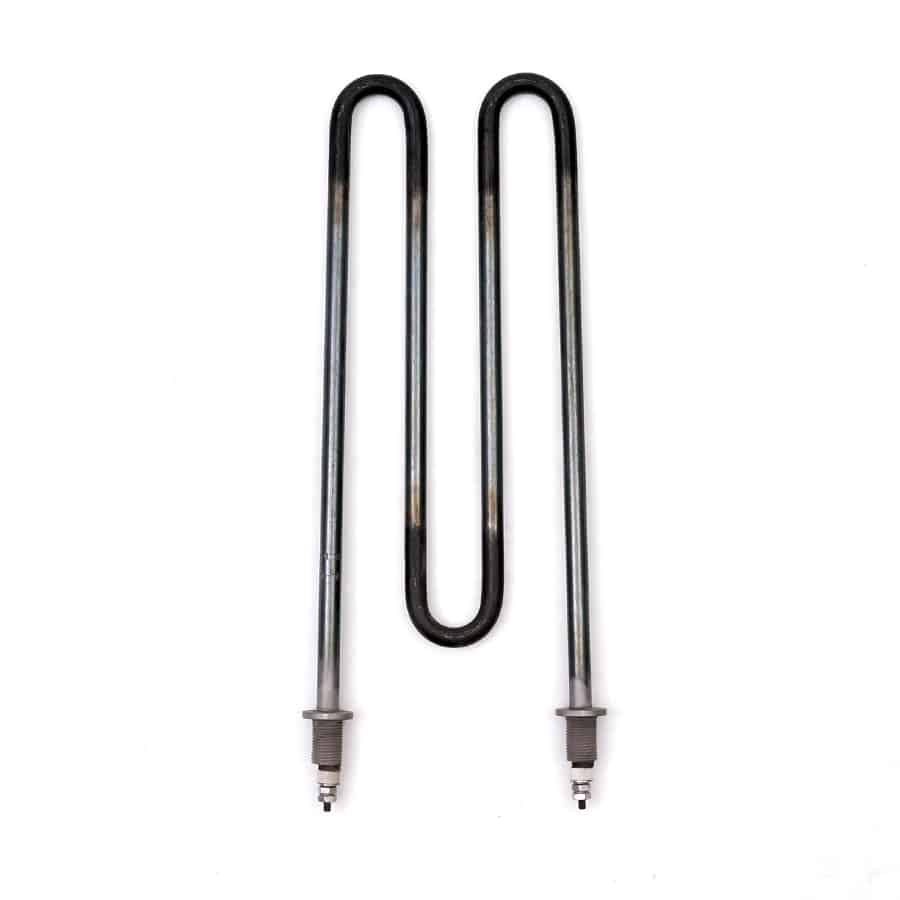

  • Bend Formations: See technical drawings.
  • Mounting Options: See technical drawings.
  • Terminations: See technical drawings.
  • Watt Density: Available up to 60W/in². Customizable to the needs of the application.
  • Certifications: UL and CSA-Recognized. Consult Heatmax Team to see if your specifications are covered.
  • Maximum Sheath Temperature: Incoloy (1600°F), Stainless Steel (1200°F), Titanium (600°F), Copper (350°F).
  • Epoxy End Seal Options: Epoxy (90°C/194°F), Silicone RTV (200°C/392°F), High Temp Silicone (260°C/500°F).
  • Forming Machines
  • Immersion Heating of Liquids
  • Humidifiers
  • Radiant & Convection Heating
  • Ovens and Furnaces
  • Duct Air or Gas Heating
  • Heating of Molds or Platens
